Product Description

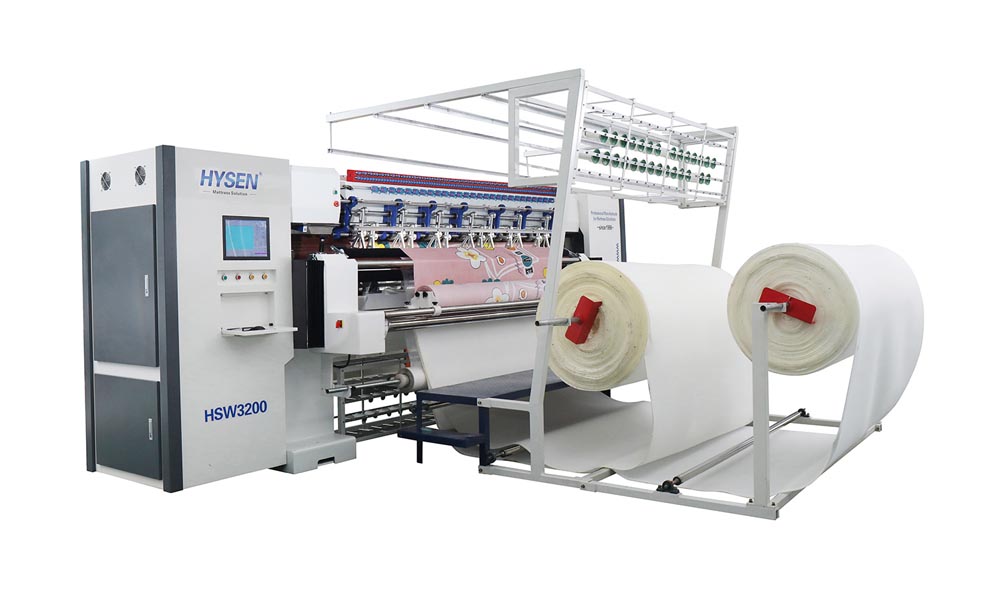

HSW3200 Computerized High Speed Shuttleless Multi-Needle Quilting Machine,the needle row adopts a needle bar frame structure, which eliminates the need for oil and avoids oil stains on the fabric. Moreover, this structure is stronger and not easy to be damaged, and the maintenance cost is low.
Advanced surface thread breakage detection technology and automatic shutdown function when thread breakage occurs.
The CAD drawing method is accurate in graphics, convenient and fast. High rigidity body, high machine operation, light vibration, low noise and no impact, regular refueling function.
A new hooking button is added. Press this button and the machine will automatically stop at the hooking position to facilitate customers to install and debug the hook.
A new high-position button is added. Press this button and the needle position will automatically stop at the highest position to facilitate needle threading.
Product Function

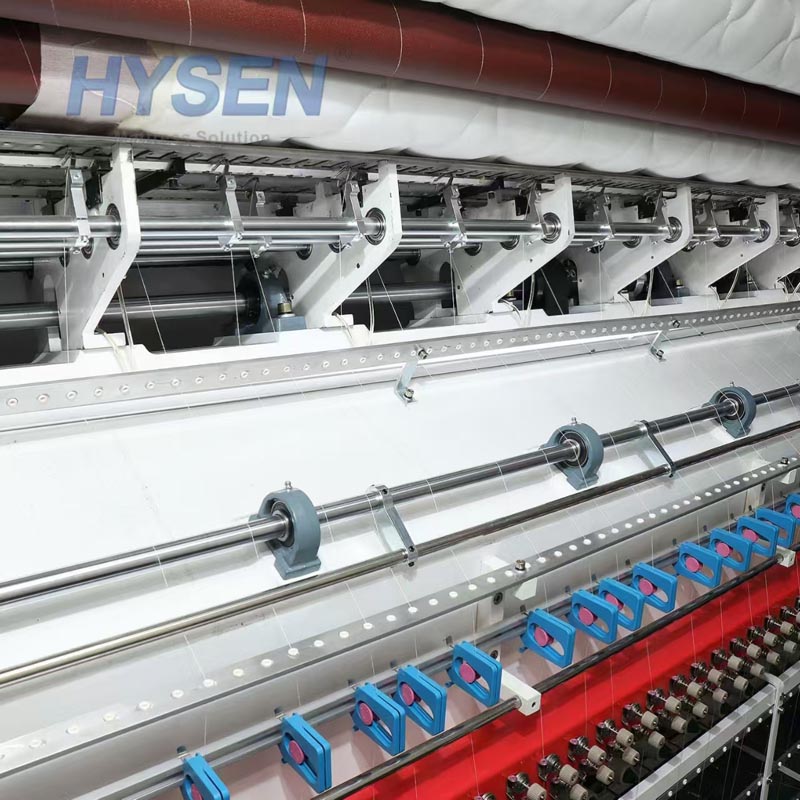

1. The needle bar adopts the needle bar frame structure, which does not need oiling, avoids oily fabrics, and this structure is not easy to damage, and the maintenance cost is low.
2. Advanced upper thread break detection technology, automatic shutdown when the thread is broken.
3. CAD drawing method, accurate graphics, convenient and fast.
4. High rigidity body, high machine operation, light vibration, low noise and no impact, and timed oiling function.

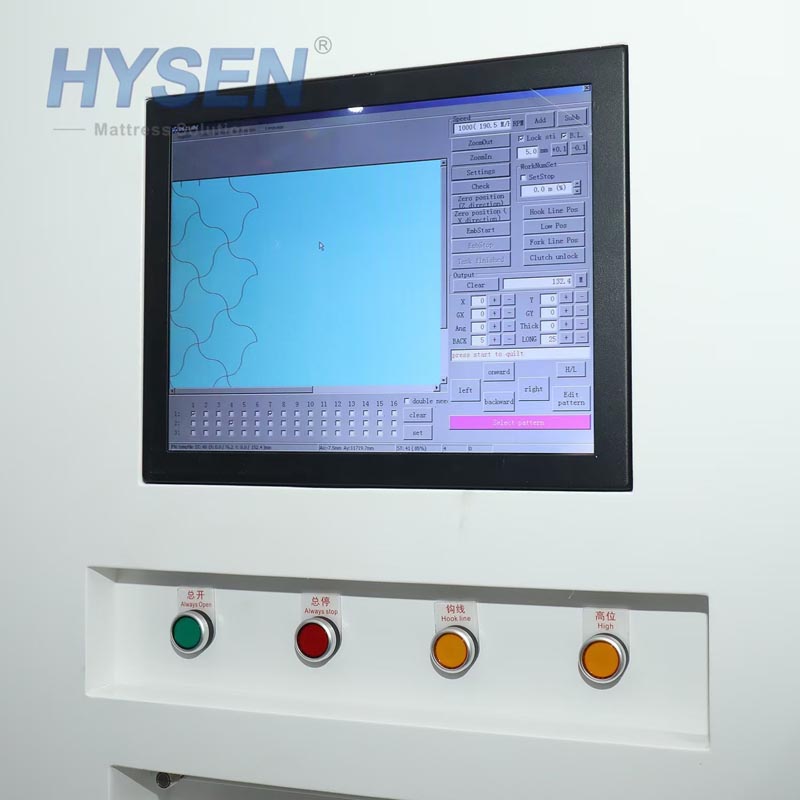

5. Added a hook line button, press this button and the machine will automatically stop at the hook line position to facilitate customers to install and debug the hook.
6. Added a high position button, press this button and the needle position will automatically stop at the highest position to facilitate needle installation and threading.
Technical Parameters
| MODEL | HSW3200 |
| DIMENSION(L*W*H) | 6000x1200x1700mm |
| QUILTING WIDTH | 2400 |
| SPACE BETWEEN NEEDLE ROWS | 76.2 |
| SPACE BETWEEN NEEDLES | 25.4 |
| X-AXIS MOVEMENT DISPLACEMENT | 305 |
| QUILTING THICKNESS | ≤60mm |
| STILCH LENGTH | 2‐8 |
| PRODUCTION SPEED | 60-230m/h |
| MODEL OF NEEDLE | 24/180 23/160 22/140 |
| MAIN SHAFT SPEED | 1200RPM |
| POWER | 6KW |
| VOLTAGE | 380V/50H 220V/60H |
| GROSS WEIGHT | 4000Kg |

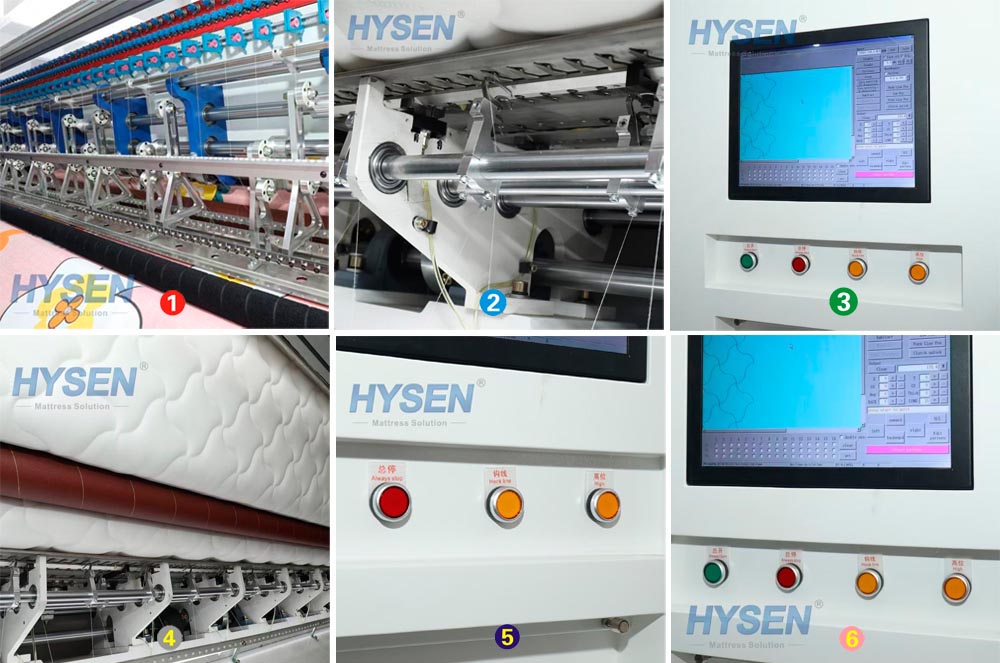

Product Details
1. The needle row adopts a needle bar frame structure and without refueling to avoid greasy fabric. Moreover, the structure is solid and not easily damaged, low maintenance costs.
2. Advanced and practical up thread-break detection technology，auto-stop when thread-breaking.
3. Easy preparation of CAD drawings extremely precise.
4. Outs tanding featllres such as high vigidity high running speed low vibration and noise.
5. New hook line button, press this button the machine automatically stops at the hook line position to facilitate customers to install and debug the hooker.
6. New high position button, press this button the needle position automatically stops at the highest position for easy loading and threading.
