Product Description

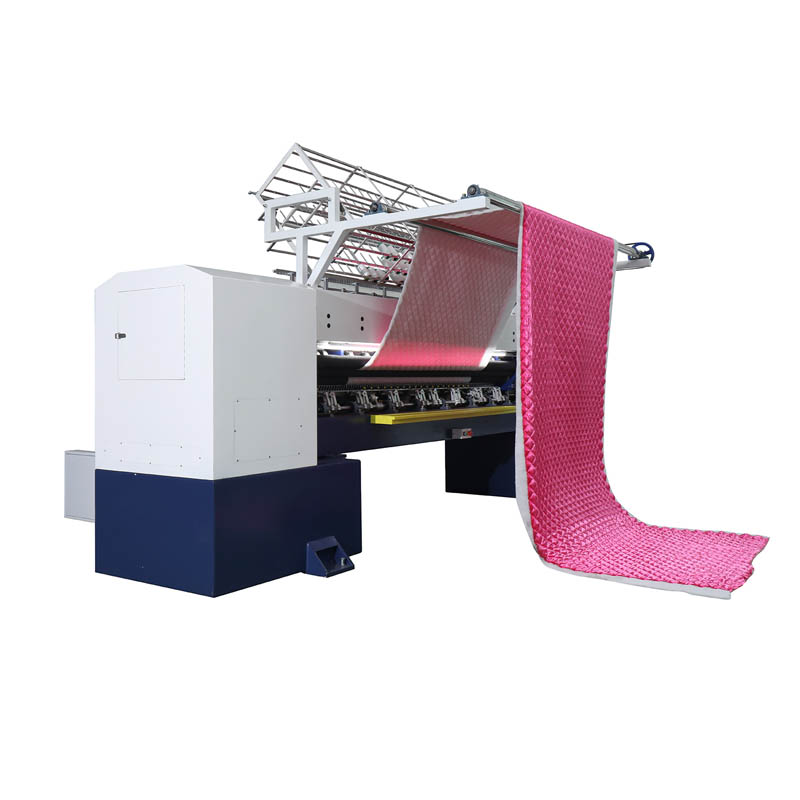

HSY118 Computerized High Speed Shuttle Multi-Function Quilting Machine，It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast！
Advanced and practical thread breakage detection technology for the pasta thread, and automatic stop function for thread breakage.
Product Function

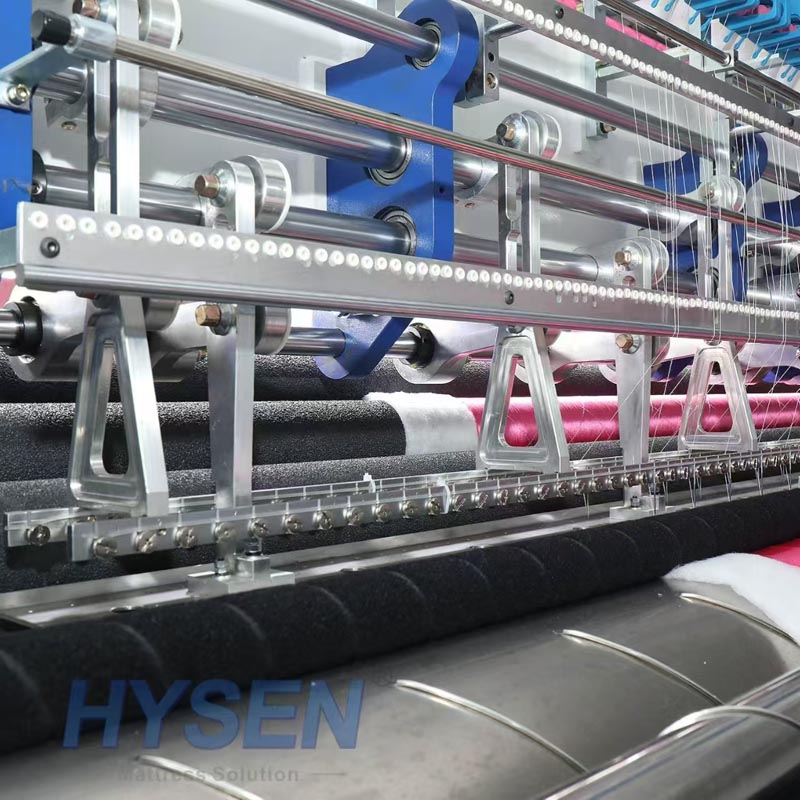

1. The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics.
2. Adopt CAD drawing method, precise graphics, convenient and quick.
3. Four-axis drive machine is more solid performance is more stable.
4. Computer speed regulation, needle speed can reach 1000 stitches per minute, needle distance can be set arbitrarily from 2mm to 6mm.
5. Multiple cross quilting (covering 360-degree and 180-degree quilting patterns)
6. Hand proximity to infrared sensors makes your operation safer.
7. Running status detection and prompting, the machine's operation can be seen at a glance.
Technical Parameters
| MODEL | HSY118 |
| DIMENSION(L*W*H) | 5600x2450x2550mm |
| QUILTING WIDTH | 2800 |
| SPACE BETWEEN NEEDLE ROWS | 76.2 |
| SPACE BETWEEN NEEDLES | 25.4 |
| X-AXIS MOVEMENT DISPLACEMENT | 305 |
| QUILTING THICKNESS | ≤30mm |
| STILCH LENGTH | 2‐6 |
| PRODUCTION SPEED | 70-150m/h |
| MODEL OF NEEDLE | 14#/16#/19# |
| MAIN SHAFT SPEED | 400-1000RPM |
| POWER | 7KW |
| VOLTAGE | 380V/50H 220V/60H |
| GROSS WEIGHT | 5000Kg |

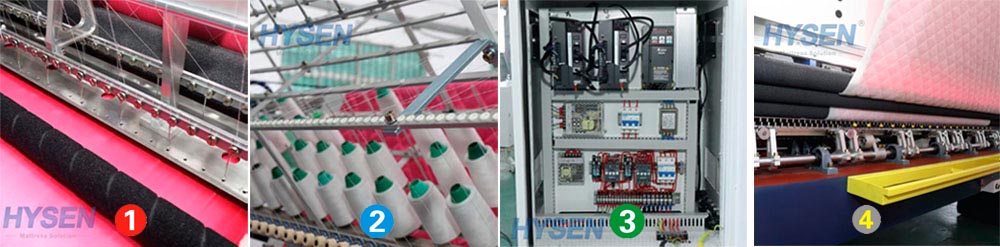

Product Details
2. Advanced and practical up thread-break detection technology，auto-stop when thread-breaking.

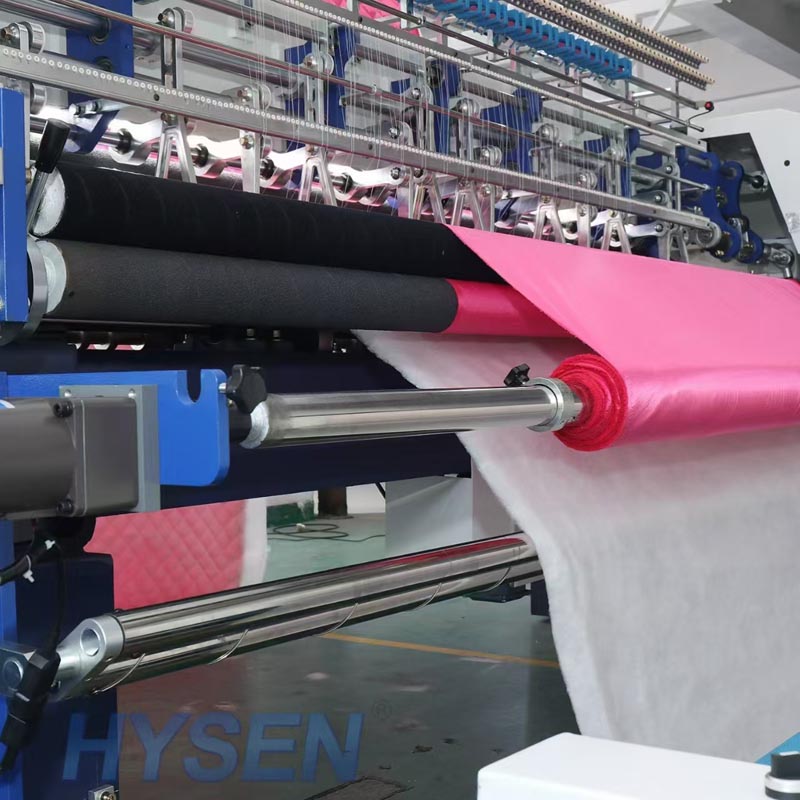

3. The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.

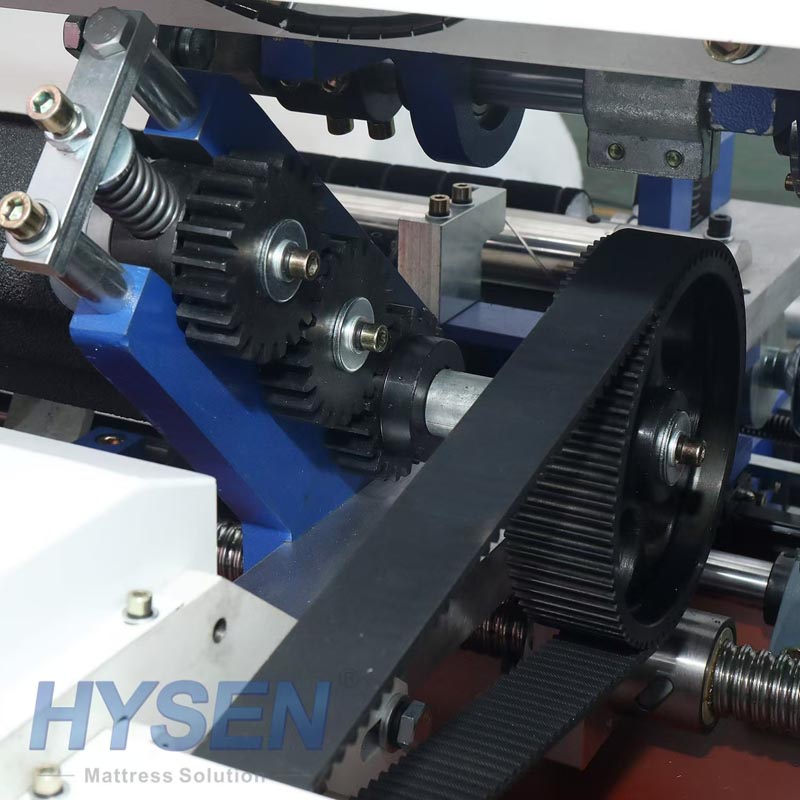

4. The four-axis actuator is more solid and stable performance.
