Product Description

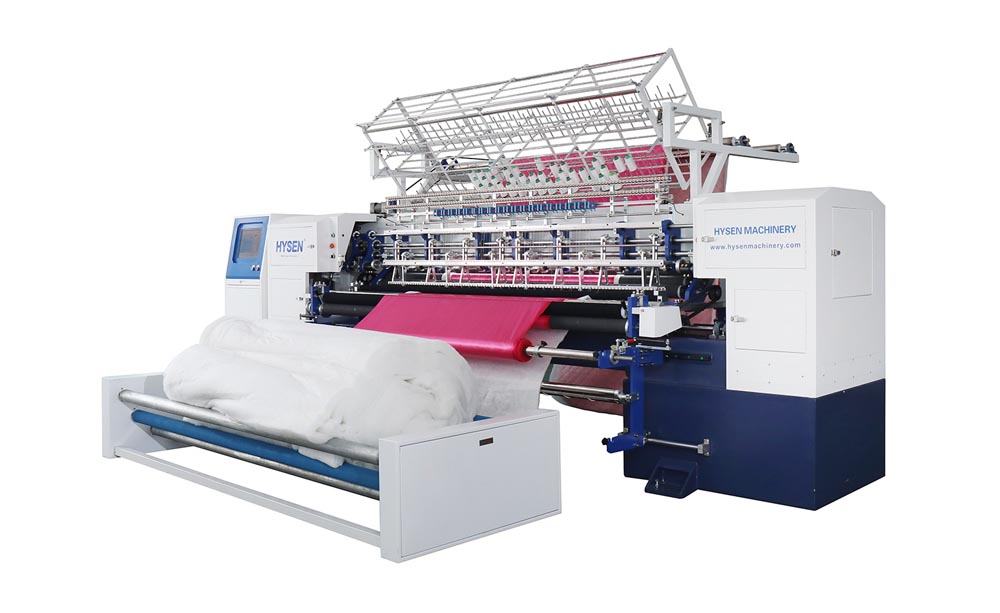

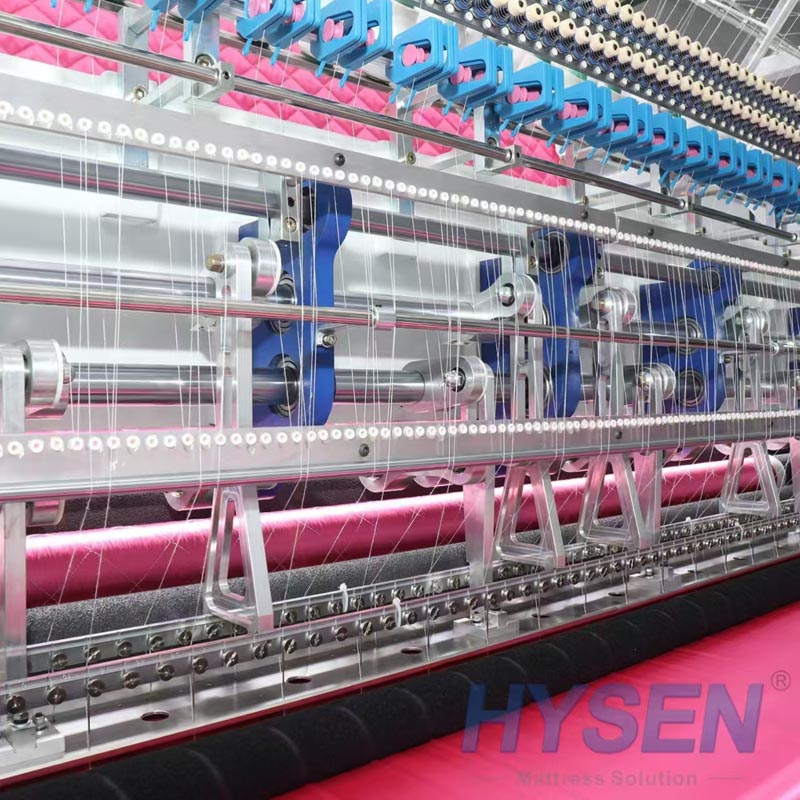

HSY80 Computerized High Speed Shuttle Multi-Needle Quilting Machine.The needle row movement adopts the needle bar frame structure, without additional refueling, thus avoiding the phenomenon of oil-contaminated fabrics. This structure is more solid and not easy to be damaged, low maintenance cost.
The production speed can reach 70-180m/h, the spindle speed can reach 400-1000rpm, and it can be quilted multiple times (covering 360 degree and 180 degree quilting patterns).
Advanced thread-breaking technology, automatic stopping when thread breaks.
Adopt CAD drawing method, precise graphics, convenient and quick.
Running status detection and prompting, the operation of the machine is clear at a glance. Four-axis drive machine is more solid performance is more stable.
Product Function
1. Advanced and practical up thread-break detection technology，auto-stop when thread-breaking.
2. Hand proximity to infrared sensors makes your operation safer.
3. CAD drawing method is used for accurate graphics and convenience.
4. The four-axis actuator is more solid and stable performance.
5. Running status detection and prompting, the machine's operation can be seen at a glance.
Technical Parameters
| MODEL | HSY80 |
| DIMENSION(L*W*H) | 4250x2450x2550mm |
| QUILTING WIDTH | 2000 |
| SPACE BETWEEN NEEDLE ROWS | 76.2 |
| SPACE BETWEEN NEEDLES | 25.4 |
| X-AXIS MOVEMENT DISPLACEMENT | 305 |
| QUILTING THICKNESS | ≤30mm |
| STILCH LENGTH | 2‐6 |
| PRODUCTION SPEED | 70-180m/h |
| MODEL OF NEEDLE | 14#/16#/19# |
| MAIN SHAFT SPEED | 400-1000RPM |
| POWER | 6KW |
| VOLTAGE | 380V/50H 220V/60H |
| GROSS WEIGHT | 4300Kg |

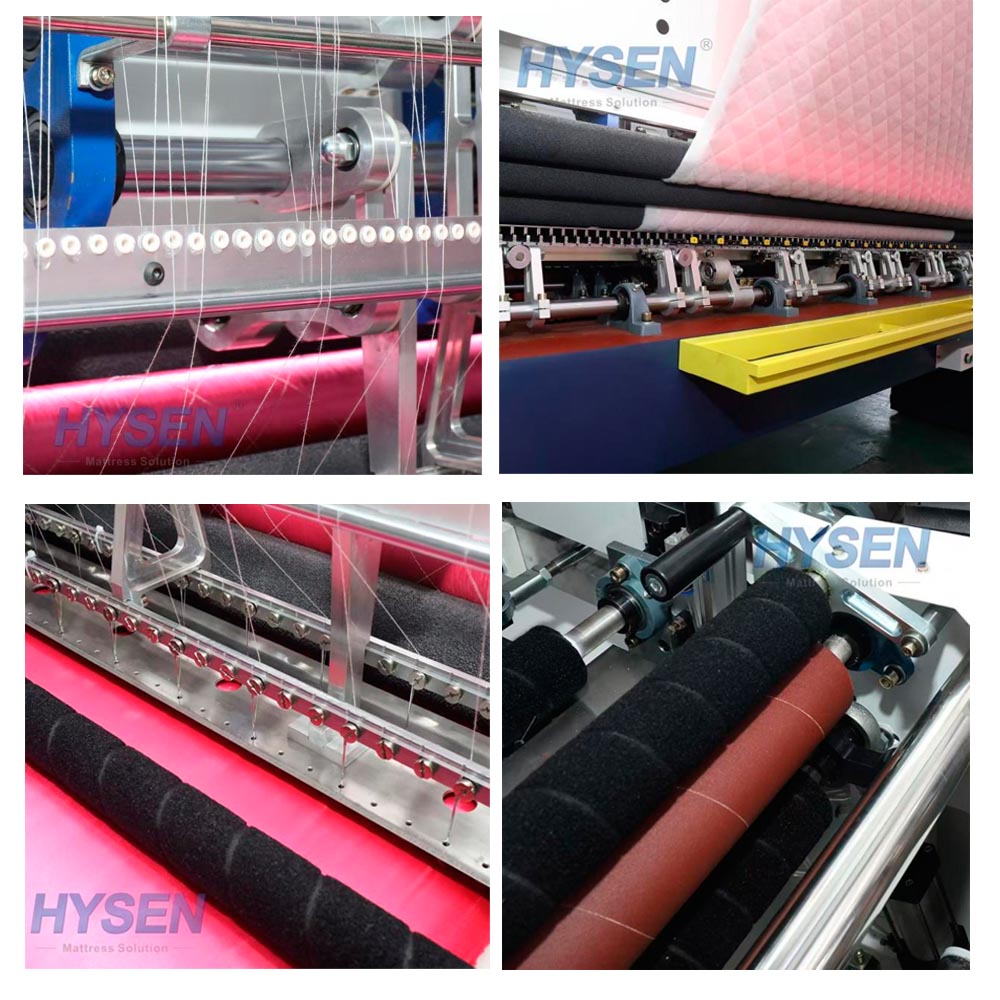

Product Details
Application Range

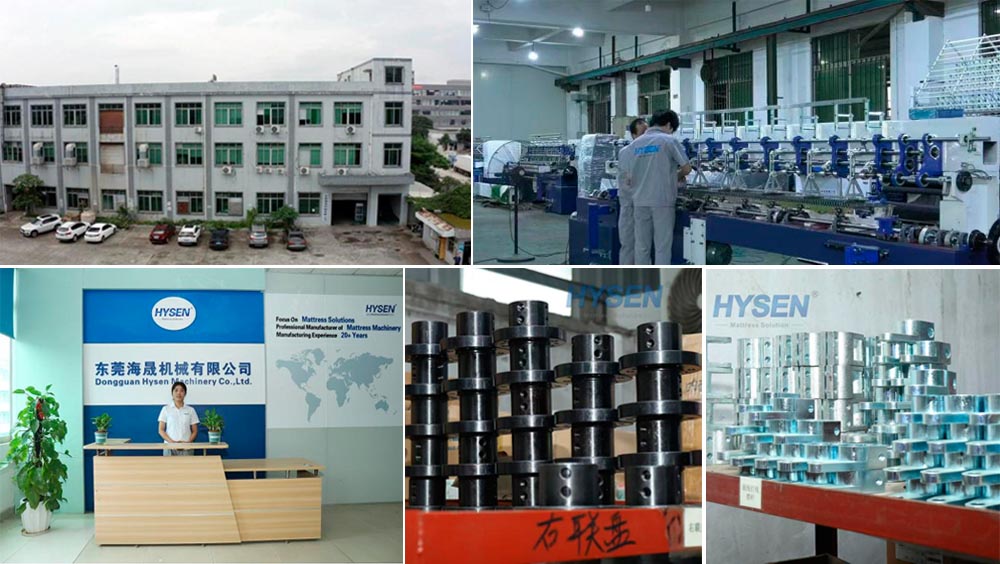

Manufacturing Capacity
Honor Certificate
