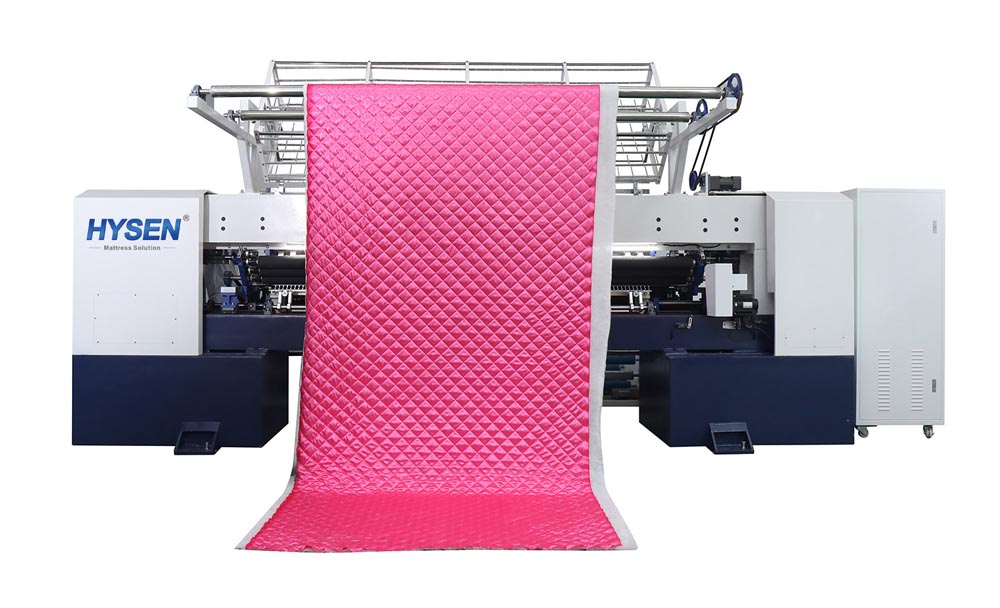

HSY96 Computerized Shuttle Multi-Needle Mattress Quilting Machine

HSY96 Computerized Shuttle Multi-Needle Mattress Quilting Machine,It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast!
DIMENSION(L*W*H): 4750x2450x2550mm
QUILTING WIDTH: 2450
SPACE BETWEEN NEEDLE ROWS: 76.2
SPACE BETWEEN NEEDLES: 25.4
X-AXIS MOVEMENT DISPLACEMENT: 305
QUILTING THICKNESS: ≤30mm
STILCH LENGTH: 2‐6
PRODUCTION SPEED: 70-180m/h
MODEL OF NEEDLE : 14#/16#/19#
MAIN SHAFT SPEED: 400-1000RPM
POWER: 6KW
VOLTAGE: 380V/50H 220V/60H
GROSS WEIGHT: 4500Kg

GET A QUOTE

PRODUCTS

DETAILS

Product Description

HSY96 Computerized Shuttle Multi-Needle Mattress Quilting Machine,It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast!

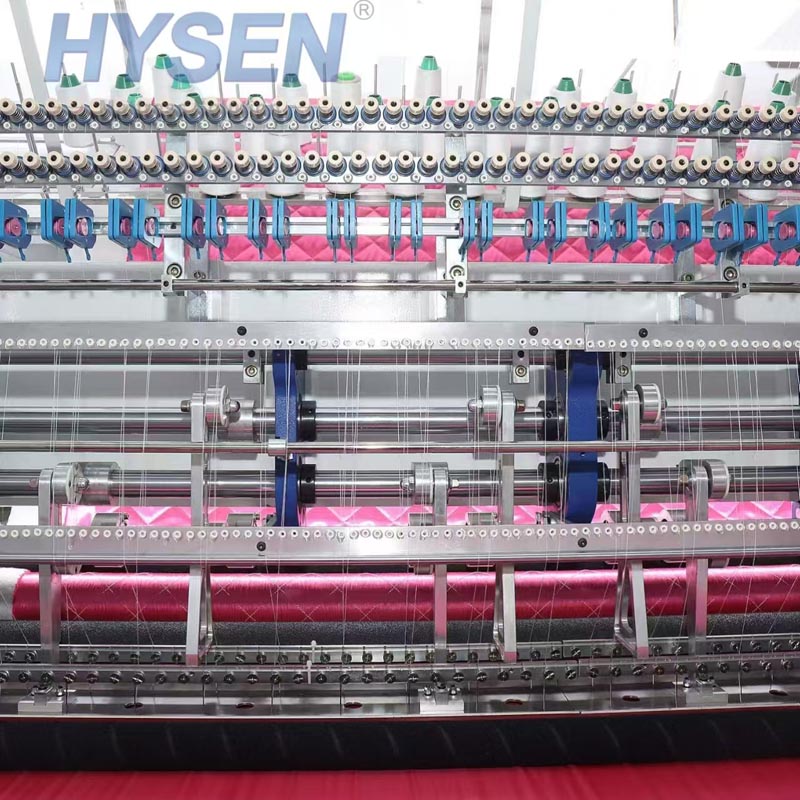

The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics. This structure is more solid and not easy to be damaged, low maintenance cost.

Product Function

1. The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics.
2. Advanced and practical thread breakage detection technology for the pasta thread, and automatic stop function for thread breakage.
3. Adopt CAD drawing method, precise graphics, convenient and quick.
4. Four-axis drive machine is more solid performance is more stable.
5. The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.
6. Computer speed regulation, needle speed can reach 1000 stitches per minute, needle distance can be set arbitrarily from 2mm to 6mm.

Technical Parameters

MODEL	HSY96
DIMENSION(LWH)	4750x2450x2550mm
QUILTING WIDTH	2450
SPACE BETWEEN NEEDLE ROWS	76.2
SPACE BETWEEN NEEDLES	25.4
X-AXIS MOVEMENT DISPLACEMENT	305
QUILTING THICKNESS	≤30mm
STILCH LENGTH	2‐6
PRODUCTION SPEED	70-180m/h
MODEL OF NEEDLE	14#/16#/19#
MAIN SHAFT SPEED	400-1000RPM
POWER	6KW
VOLTAGE	380V/50H 220V/60H
GROSS WEIGHT	4500Kg

Product Details

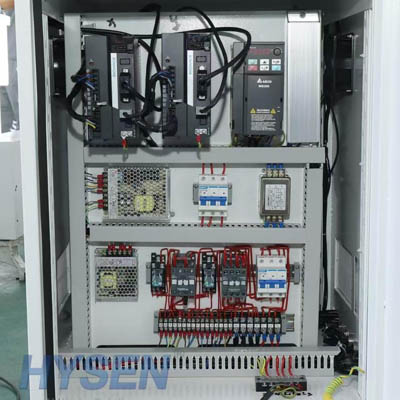

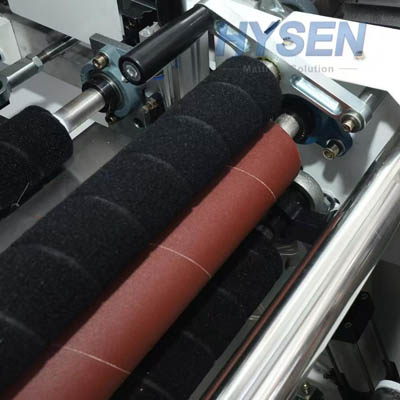

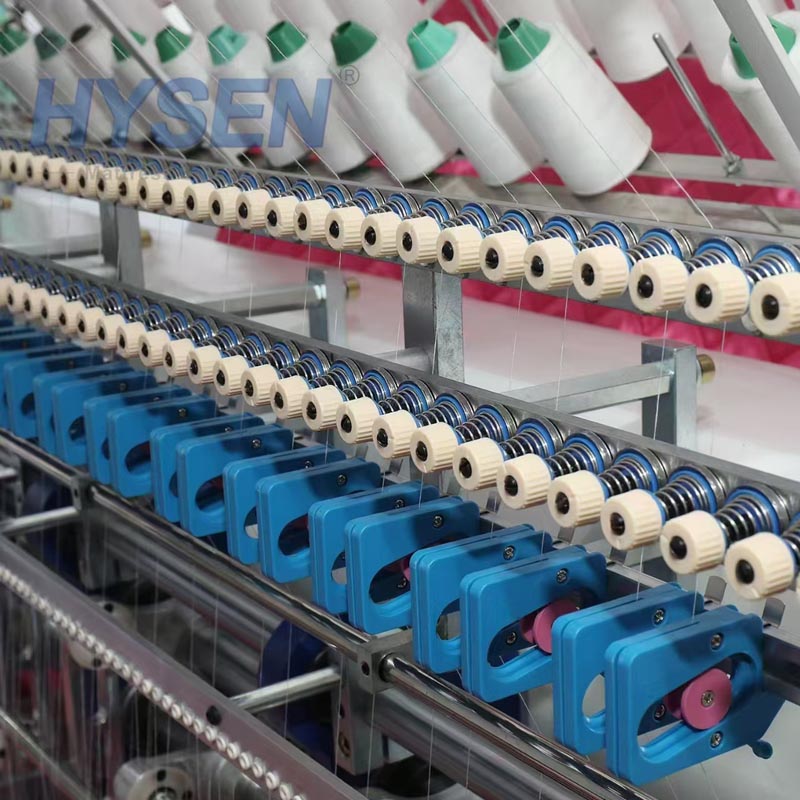

Advanced and practical up thread-break detection technology，auto-stop when thread-breaking.	The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.

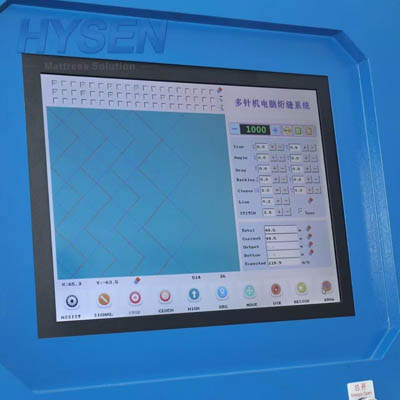

The four-axis actuator is more solid and stable performance.	Easy preparation of CAD drawings extremely precise.
