Product Description

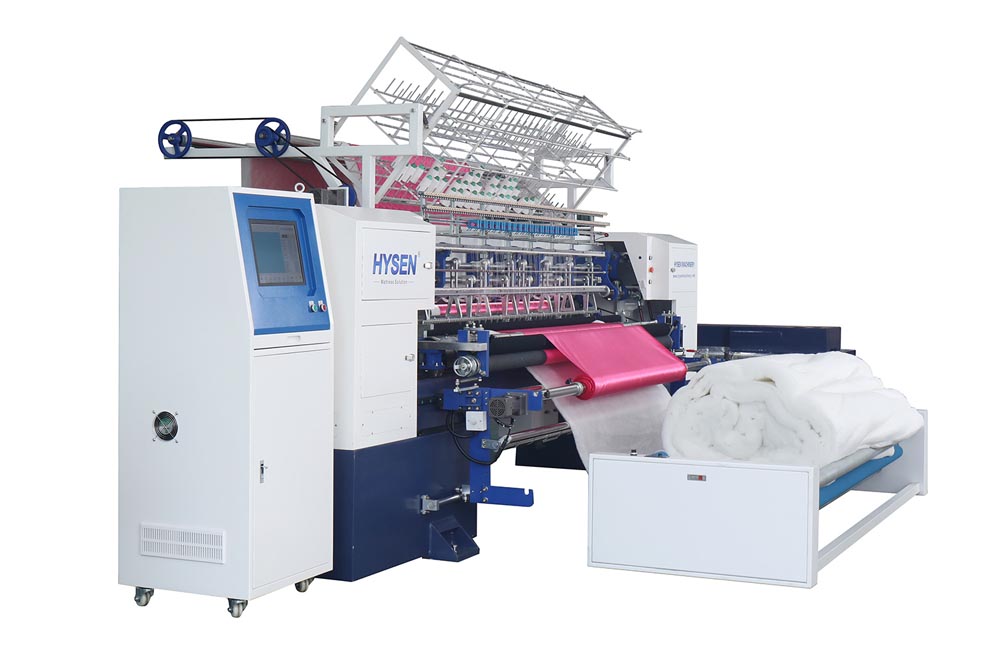

HSY76 Computerized shuttle multi-needle quilting machine, the saddle frame and roller are servo-driven.
The main shaft adopts frequency conversion control device.Production speed up to 70-180m/h. Multiple cross quilting (covering 360 degree and 180 degree quilting patterns).
Advanced and practical thread breakage detection technology for top thread, automatic stop function for thread breakage.
Hand feeling close to infrared sensor, make your operation safer.
Adopt CAD drawing method, precise graphics, convenient and quick.

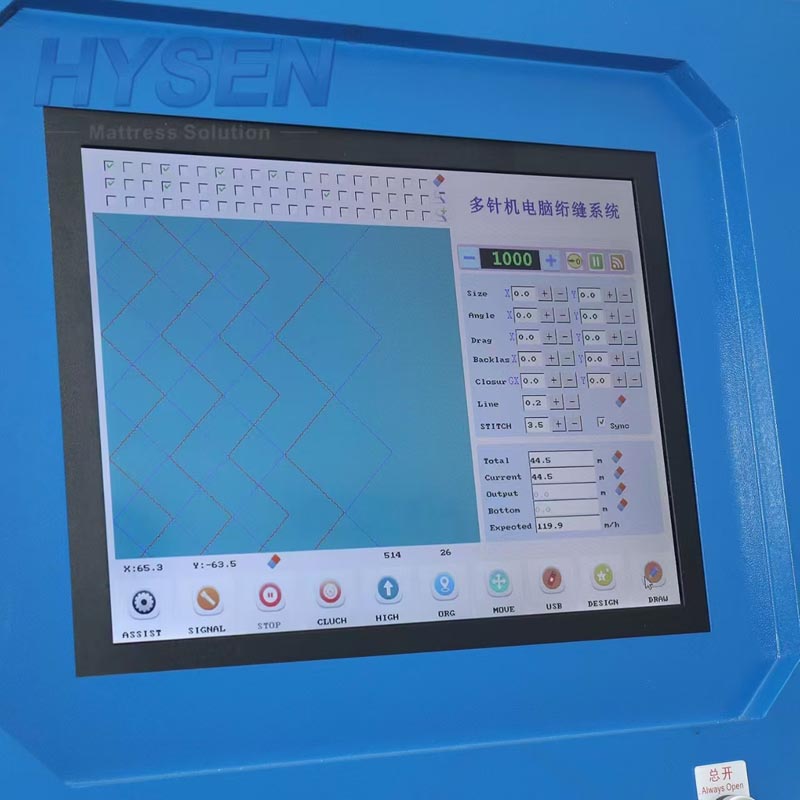

Running status detection and prompting, the operation of the machine is clear at a glance.
Four-axis drive machine is more solid performance is more stable.
Product Function

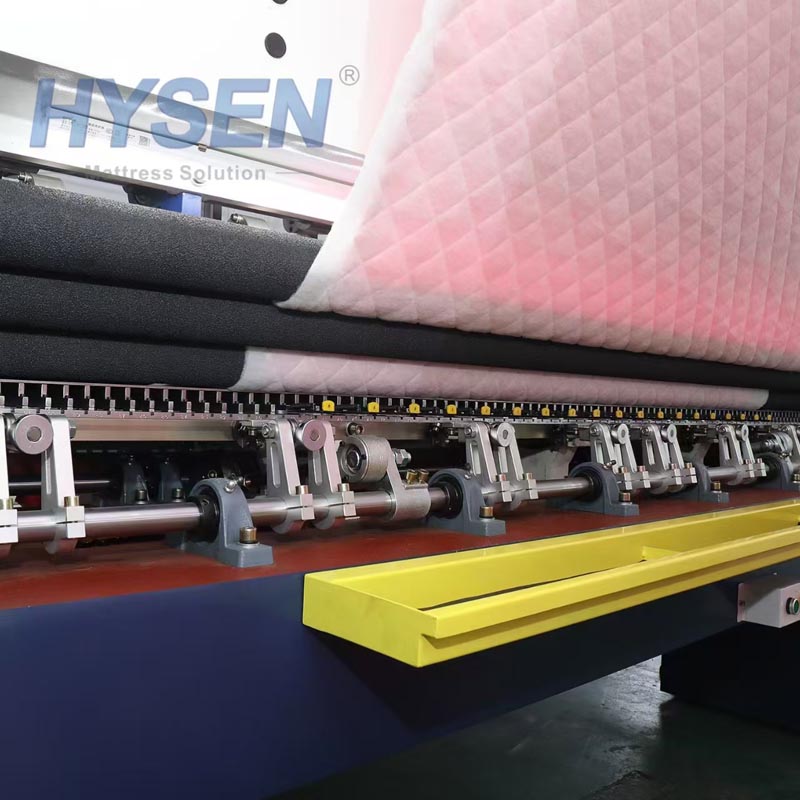

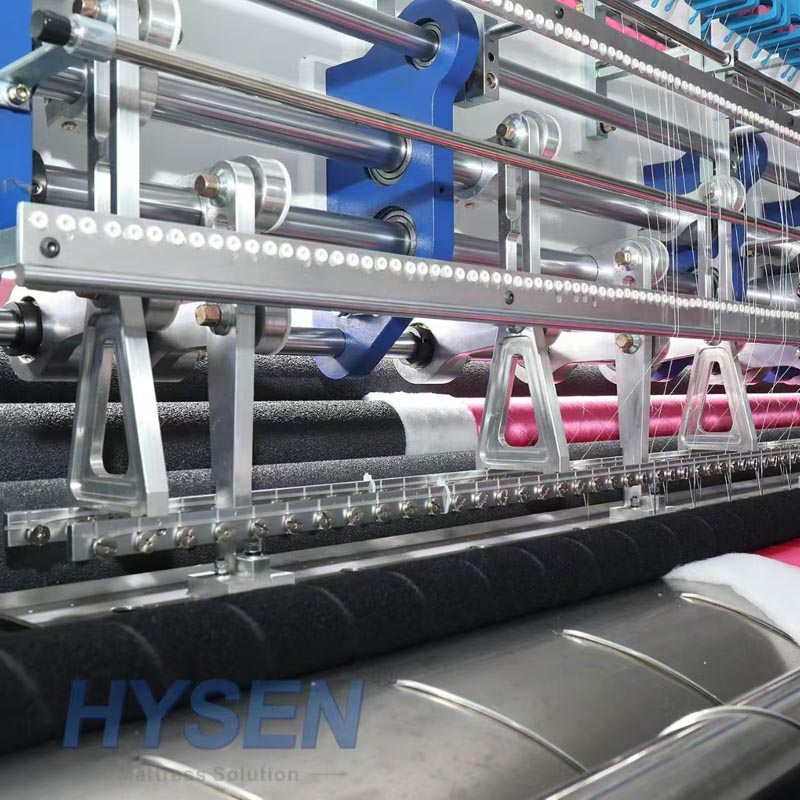

1. The needle row movement is constructed with a needle bar holder, which eliminates the need for additional oiling, thus avoiding the phenomenon of oil-contaminated fabrics.
2. The needle bar frame is more firmly constructed and less prone to damage, with low maintenance costs.

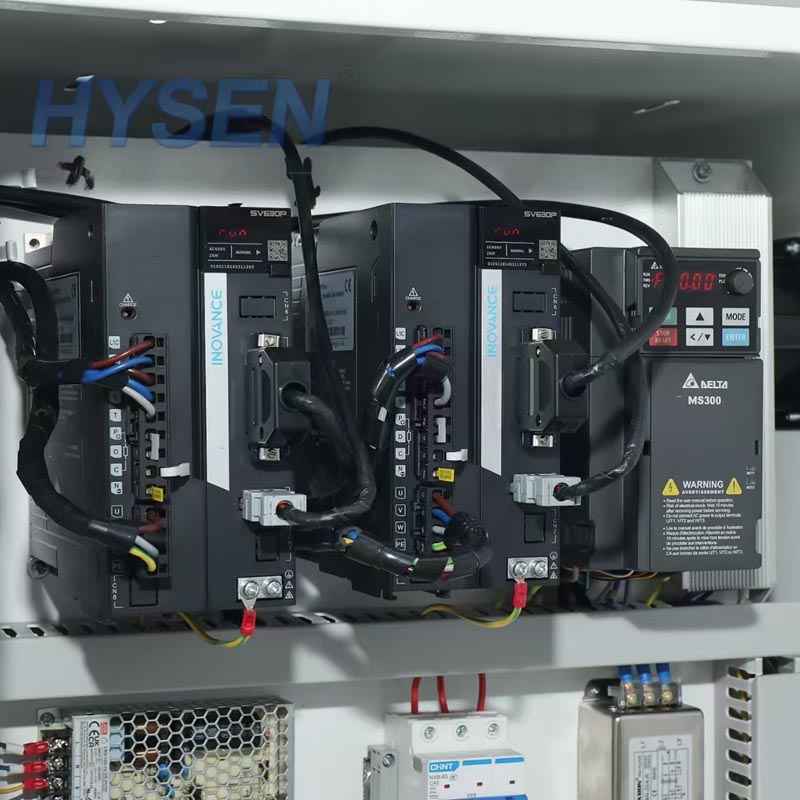

3. The saddle frame and rollers are servo-driven.
4. The spindle is controlled by a frequency converter.
5. Production speed up to 70-180m/h.
6. Adopt CAD drawing method, precise graphics, convenient and quick.
Technical Parameters
| MODEL | HSY76 |
| DIMENSION(L*W*H) | 4100x2450x2550mm |
| QUILTING WIDTH | 1900 |
| SPACE BETWEEN NEEDLE ROWS | 76.2 |
| SPACE BETWEEN NEEDLES | 25.4 |
| X-AXIS MOVEMENT DISPLACEMENT | 305 |
| QUILTING THICKNESS | ≤30mm |
| STILCH LENGTH | 2‐6 |
| PRODUCTION SPEED | 70-180m/h |
| MODEL OF NEEDLE | 14#/16#/19# |
| MAIN SHAFT SPEED | 400-1000RPM |
| POWER | 6KW |
| VOLTAGE | 380V/50H 220V/60H |
| GROSS WEIGHT | 4200Kg |

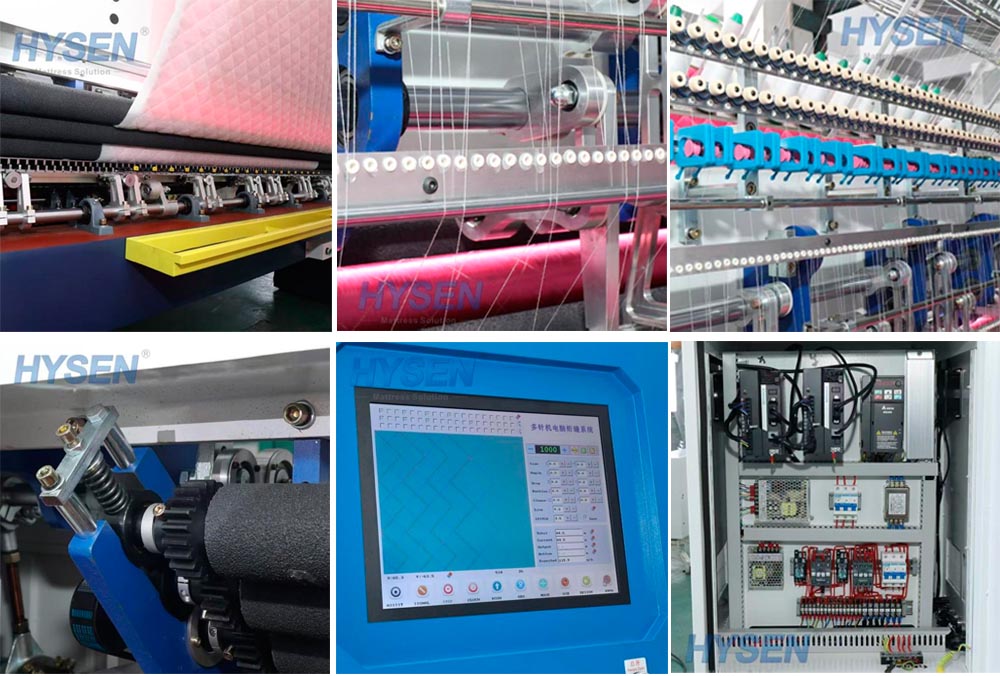

Product Details
Application Range

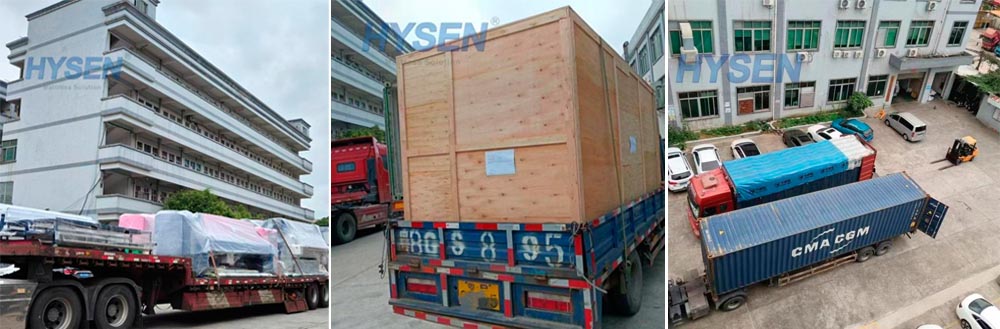

Manufacturing Capacity
\
Honor Certificate
