Product Description

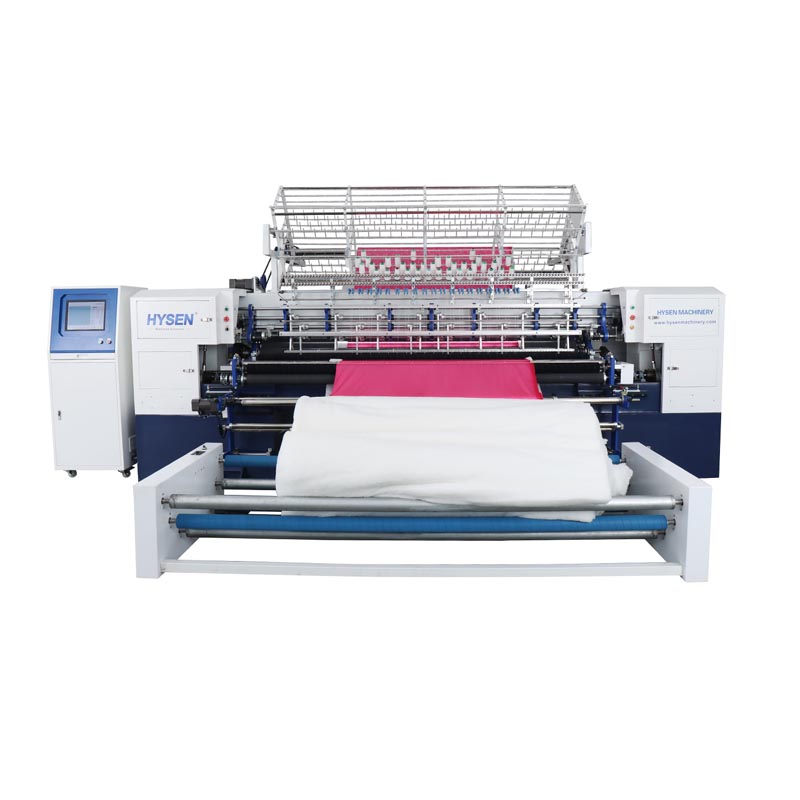

HSY128 High Speed Automatic Shuttle Multi-Needle Quilting Machine，It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast！The saddle and roller are driven by servo and the main shaft is controlled by frequency converter. Easy preparation of CAD drawings extremely precise.
Product Function

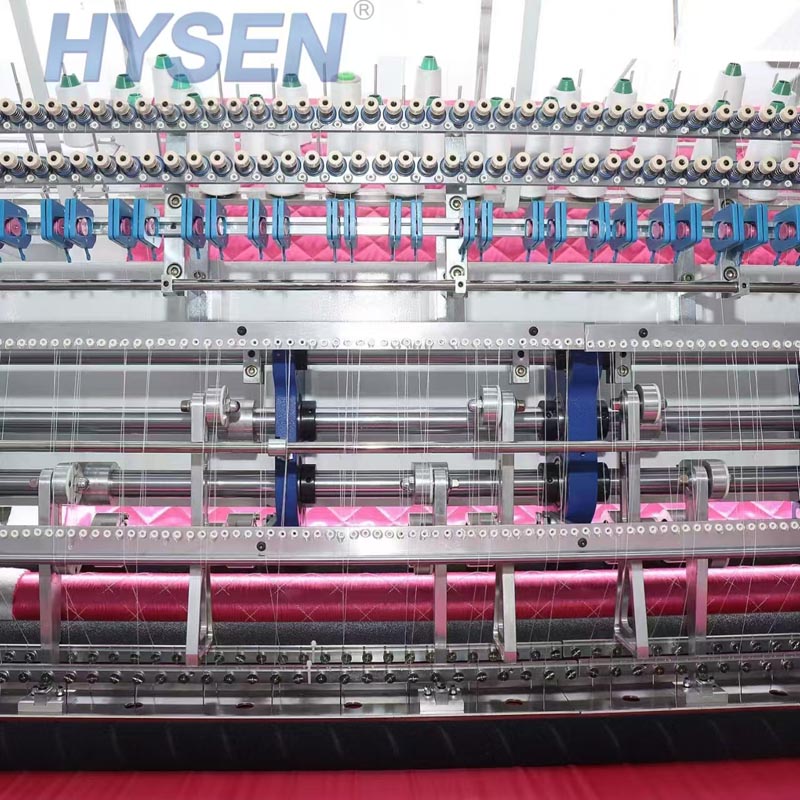

1. The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics.
2. Adopt CAD drawing method, precise graphics, convenient and quick.
3. Four-axis drive machine is more solid performance is more stable.
4. Running status detection and prompting, the machine's operation can be seen at a glance.
5. Four-axis drive machine is more solid performance is more stable.
Technical Parameters
| MODEL | HSY128 |
| DIMENSION(L*W*H) | 5600x2450x2550mm |
| QUILTING WIDTH | 3300 |
| SPACE BETWEEN NEEDLE ROWS | 76.2 |
| SPACE BETWEEN NEEDLES | 25.4 |
| X-AXIS MOVEMENT DISPLACEMENT | 305 |
| QUILTING THICKNESS | ≤30mm |
| STILCH LENGTH | 2‐6 |
| PRODUCTION SPEED | 70-150m/h |
| MODEL OF NEEDLE | 14#/16#/19# |
| MAIN SHAFT SPEED | 400-1000RPM |
| POWER | 7KW |
| VOLTAGE | 380V/50H 220V/60H |
| GROSS WEIGHT | 5000Kg |
Product Details
 |
 |

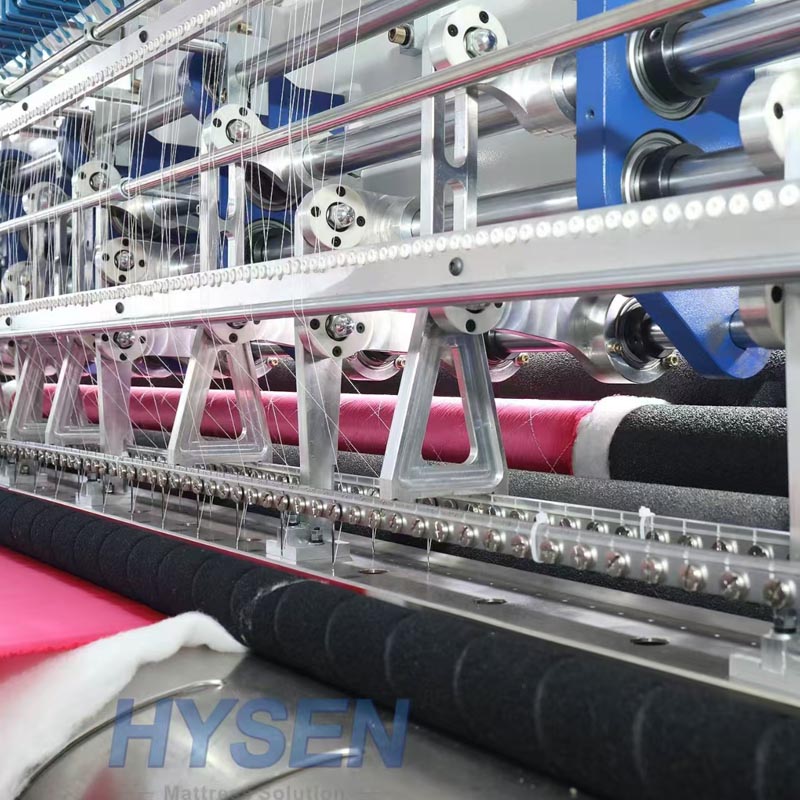

| Advanced and practical up thread-break detection technology,auto-stop when thread-breaking. | The saddle and roller are driven by servo and the main shaft is controlled by frequency converter. |
 |
 |
| Multiple cross quilting (covering 360-degree and 180-degree quilting patterns) | Easy preparation of CAD drawings extremely precise. |
Application Range

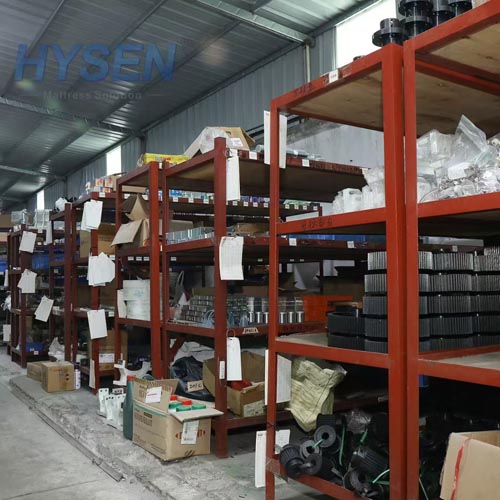

Manufacturing Capacity
Honor Certificate
